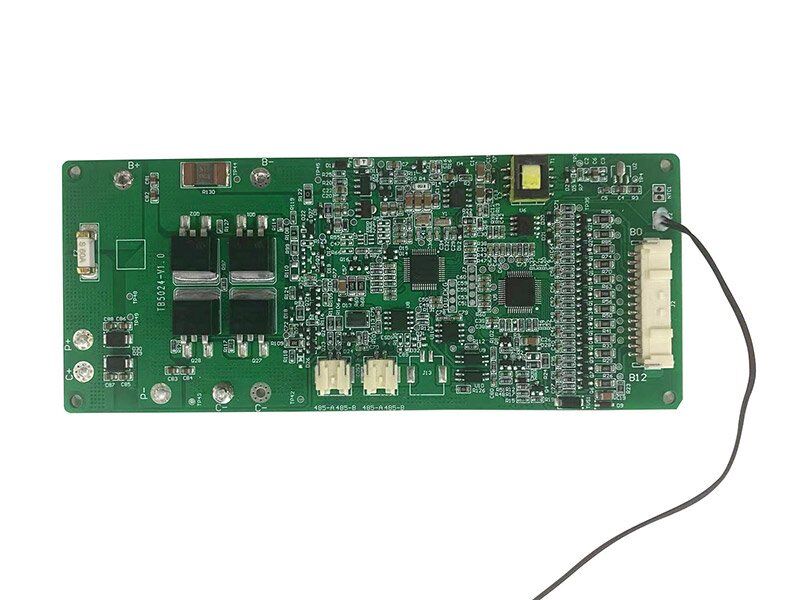

12S20A BMS-TB5024

Built-in AI,SOC algorithm; Resume management; Import solution; Over current, over voltage, over temperature, short circuit protection

Additional information

Battery Types

LFP

Battery Cell Strings

8-12S

Voltage

36V

Operating Voltage

32.4-43.2V

Peak Current

≤10A

Maximum continuous Charging

≤10A

Charge and discharging port

Different Port

Over-Current Discharge

≤15A(<5S)

Balance Current

35±10mA

Size

151*63*9mm

Chip Solution

SINO WEALTH+Nation

Communication protocol

RS485

12S20A BMS-TB5024

Protection function description

  • Various protection functions for charging and discharging
  • Hardware discharge over-current, short-circuit protection function processing
  • Over voltage, under voltage, temperature and overload protection function processing of software
  • Accurate SOC calculation with automatic SOC learning function
  • Reserved RS485, CANBUS communication
  • UART communication function, can read all data of battery in real time and upgrade online
  • Balance voltage ,longer lifespan



tb5024


Application

Electric bicycle, electric forklift, electric wheelchair, two-wheeled vehicle, three-wheeled vehicle, floor sweeper, underwater robot

16s50a bms

Our Advantages:

  1. One-stop solution from empty board to finished board.
  2. High yield :SPI test,X-ray,AOI test,QC,100% functional test.
  3. Efficient and professional service,R&D with more than 60 engineers.
  4. Certifications:ISO9001,IATF16949,UN38.3、CE、FCC、CB、UL
  5. Provide OEM&ODM service
  6. Full coverage monitoring by ERP&IMS system
  7. 100k dust-free workshop



16s50a bms

3 reasons

  1. A safe product and full compliance with certificates in the lithium battery industry, enabling you to use our product worldwide with no restrictions.
  2. We make every effort to supply sustainable BMS solutions. You can expect more than 500 cycles or 2.5 years shelf life.
  3. We are your true BMS partner because we care about efficient service. Our future service center, in Europe, will be on 24 hours standby for your convenience.
