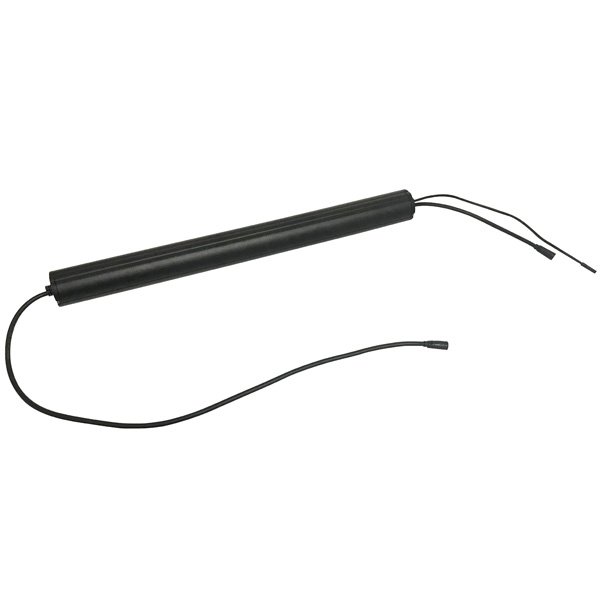

e bike Inner tube battery

Category

Light, Small, Smart, Inner tube Battery

It’s a battery pack for the electric road bike with slim frame. If you need a battery hidden in the electric bike, and you are looking for high output, light weight, in a small volume, this model is perfect for you. The sealing applied with IP67 is also a plus.

Additional information

Voltage

36V, 48V

Capacity

6.8Ah

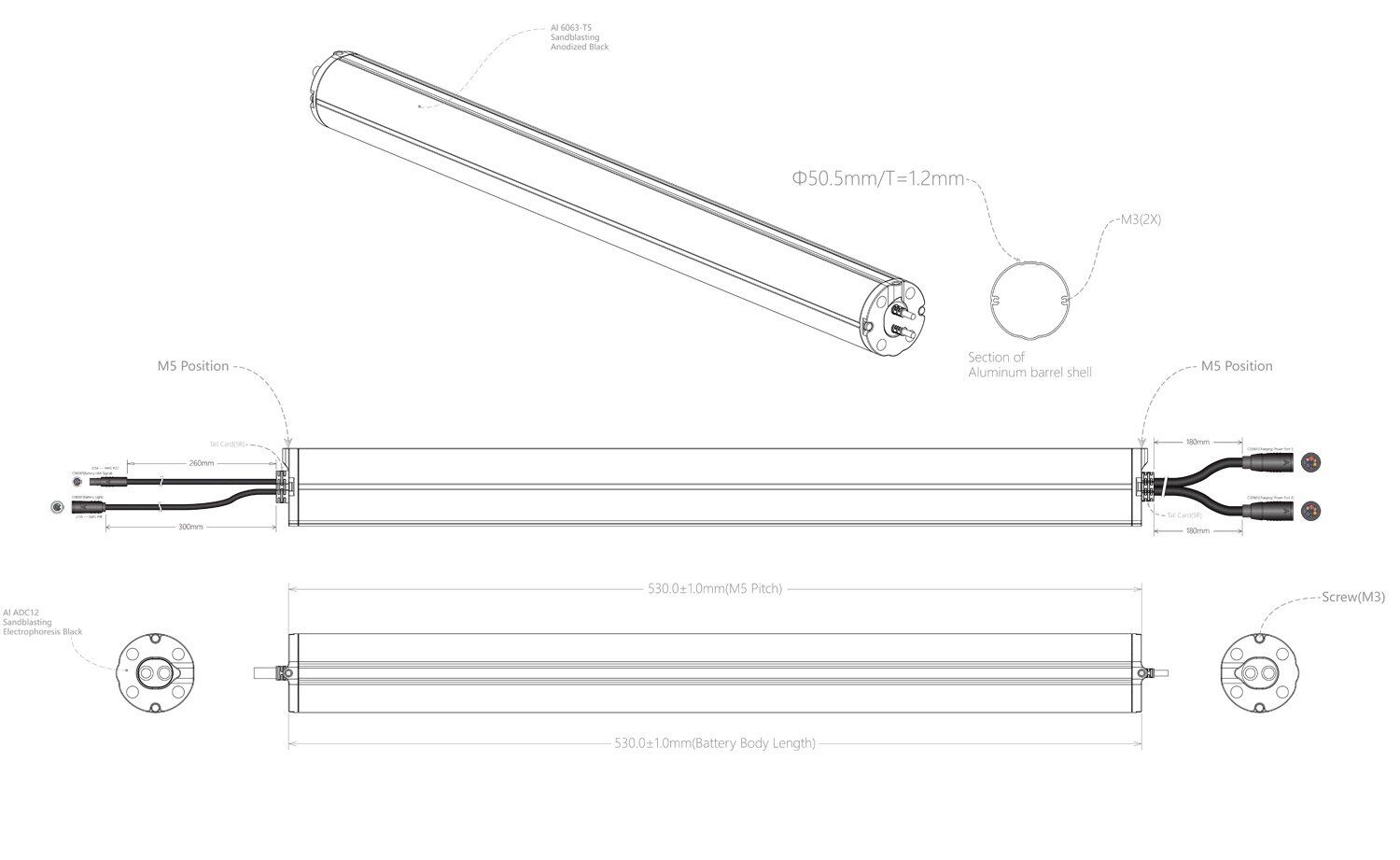

Dimensions

50 * 466.5 mm, 50 * 530.5 mm

Cell type

Panasonic NC R18650GA

Communication protocol

CAN

Discharge rate

8A continuous, 30A max

Cell Structure

10S2P, 13S2P

Capacity

244.8Wh/326.4Wh

Cycle life

300 cycles – 80% of the Rated Discharge Capacity @ RT

Case Type

In Tube

Certificate

CE, EN 15194:2017, FCC, ROHS, UN-Package, UN38.3

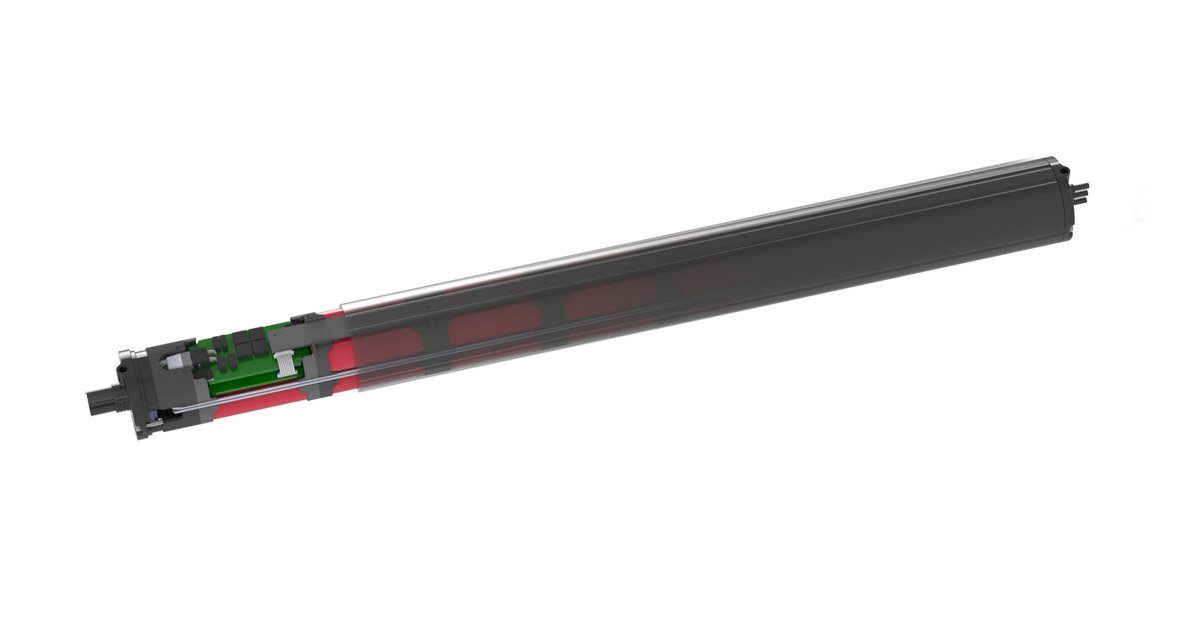

e bike Inner tube battery

e bike inner tube battery

Key Features

  • Dual battery solution
  • Super lightweight: only 1.35kg for 36V and 1.95kg for 48V
  • Low standby power consumption of BMS: ≤200uA for sleep mode, ≤20mA for normal mode
  • Good consistency: free of charge for 6 months
  • Low self-discharge: deep sleep mode for storage
  • Stable and extremely robust housing
  • Smart BMS and smart App
  • LED display
  • Easy handling
  • Waterproof IP67

Performance

  • Charge temperature: 1-45℃
  • Discharge temperature: -20-60℃

Functions

  • Overcharge voltage
  • Over discharge voltage
  • Over temperature protection
  • Cell balance
  • Provides the current status of the battery
  • Provides calendar information
  • Short Circuit Protection
  • CAN bus communication interface
  • HMI display
  • The secondary protection
